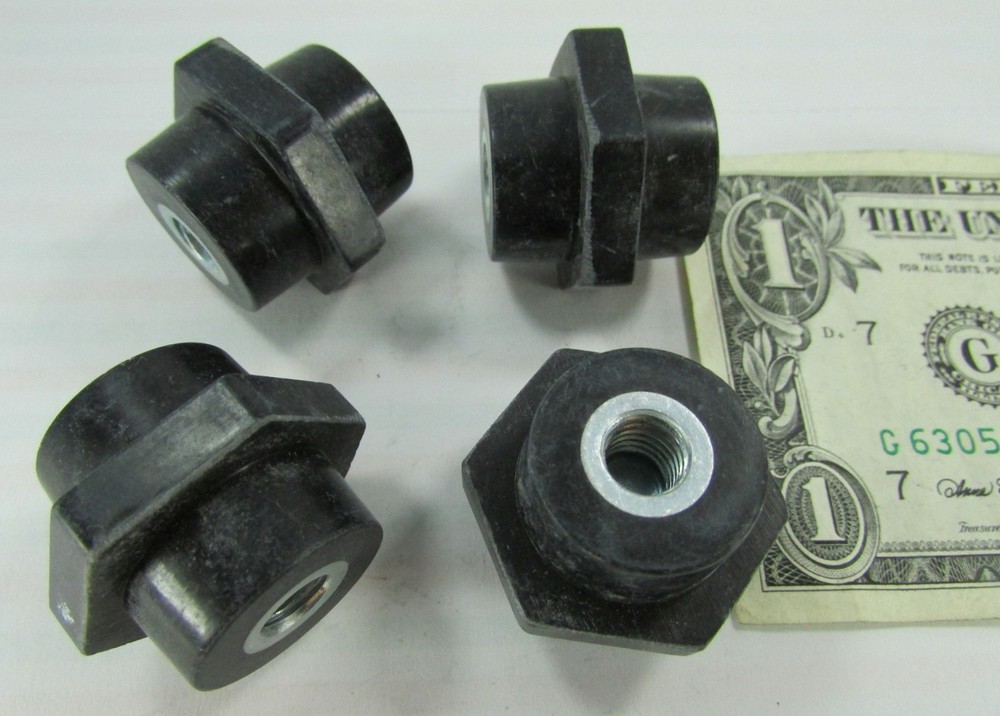

Lot 4 Erico 600V Electrical Insulators 1″ Standoff 5/16-18 Female Thread 559610
USD 9.99 USD
Specifications
| Tensile Strength | 1500 Lbs. |
| Body Diameter | .82" / 20.83 MM |
| Approvals | UL (Canada and US), CSA |
| MPN | 559610 |
| SELLER LOCATION | USA |
| Flammability Rating | UL 94V-0 |
| Hex Size | 1.121" / 28.47 MM |
| Brand | ERICO |
| Threads | 5/16-18 |
| Type | Standoff Insulator |
| Overall Length | .997" / 25.32 MM |
| Model | 559610 |
| Thread Depth | .370" / 9.39 MM |
| Thread Gender | Female |
| Dielectric Withstand Rating | 1,500 VAC/DC |
| UPC | 782856579373 |
A nice touch from ERICO is the extra strain relief on the cable entry.
