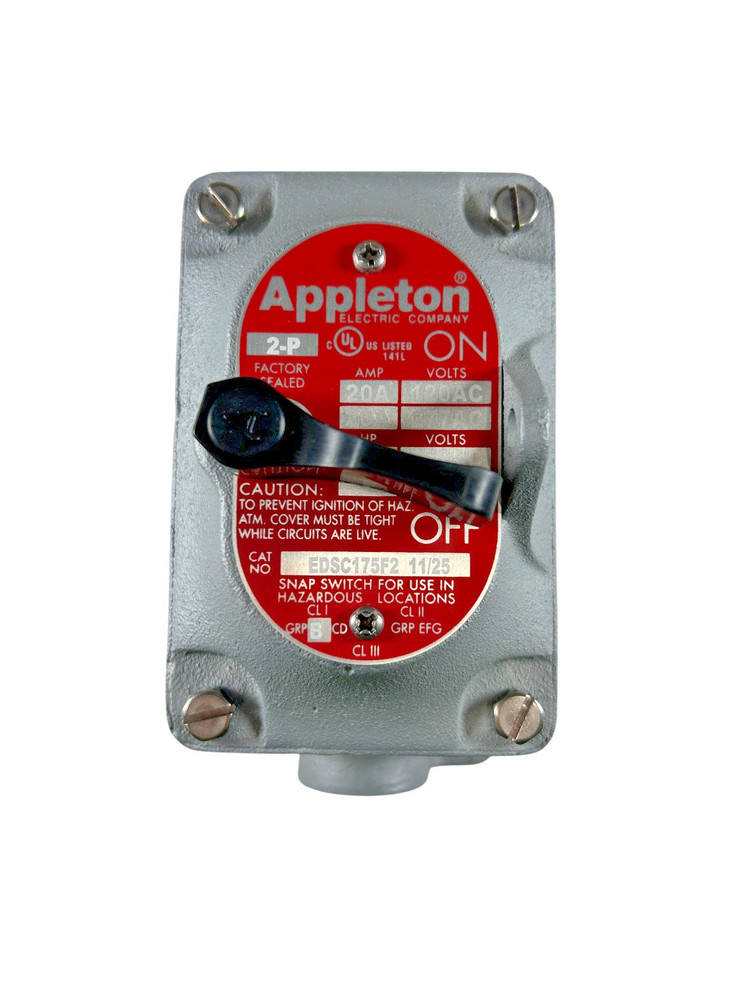

Appleton EDSC175F2 3/4″ Hub Size 277VAC 20A 2P1 Gang Front Lever Tumbler Switch
USD 457.60 USD
Specifications
| Overall Height | 6.13 in |
| Voltage Rating - Maximum | 277 V AC |
| NEMA Enclosure Rating | 3; 7; 9 |
| MPN | EDSC175F2 |
| Unit Type | Unit |
| Horsepower @ 120V AC | 1 HP |
| Overall Width | 3 in |
| Horsepower @ 240V AC | 2 HP |
| Overall Depth | 4.69 in |
| Actuator Style | Front Lever |
| Current Rating | 20A |
| Hub Style | Feed-Thru |
| Switch Type | 2-Pole |
| Standards | UL Listed |
| Brand | Appleton |
| Series | EDS |
| Type | Tumbler Switch |
| Body Material | Malleable Iron |
| Model | Tumbler Switch |
| Mounting Orientation | Vertical |
| Hub Size | 3/4 in |
| Country Of Origin | Mexico |
The Appleton brand is often specified by engineers for critical systems.
